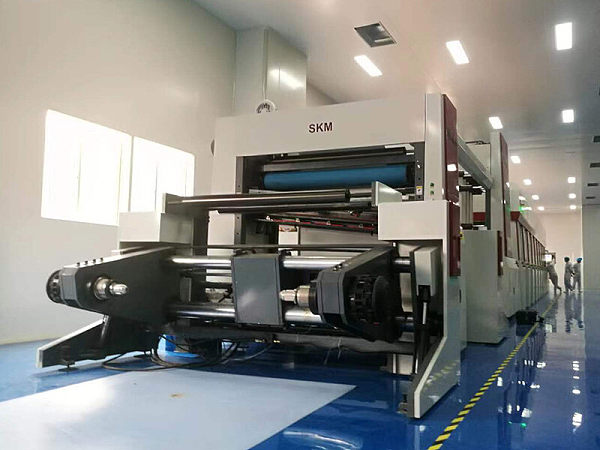

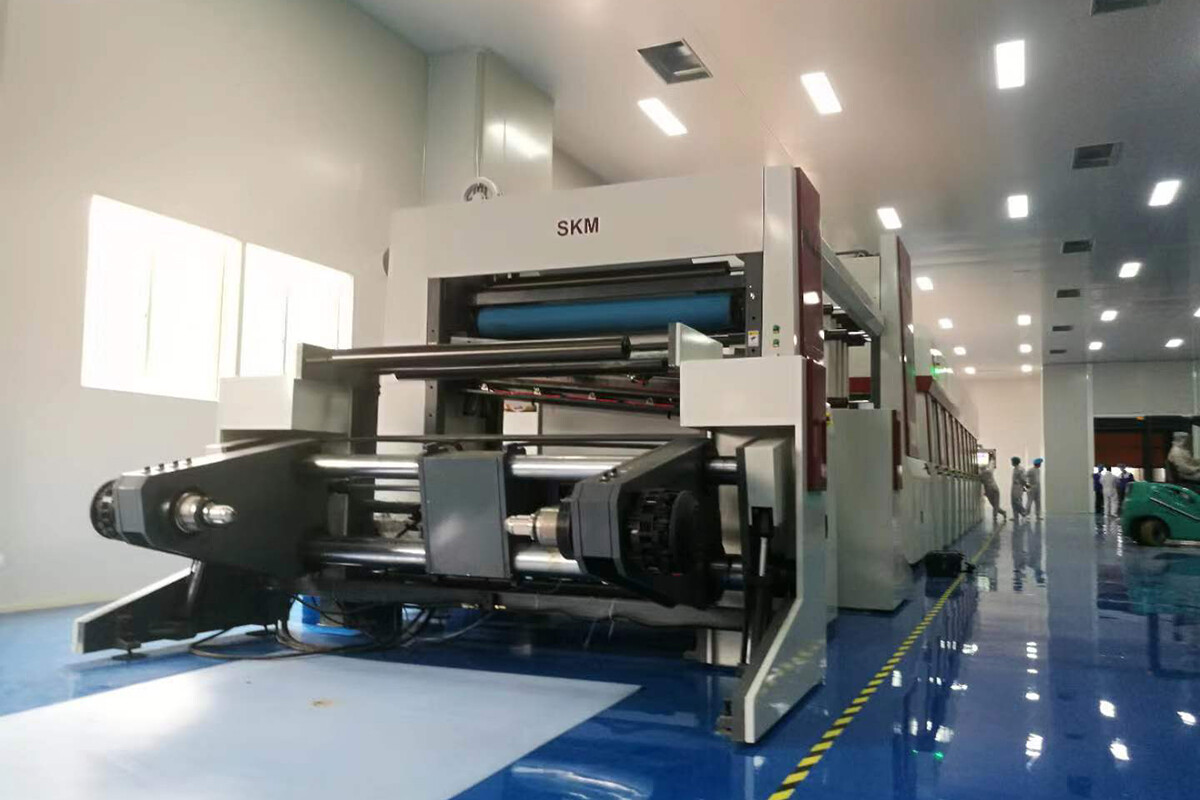

Food and medicine packaging flexographic printing machine

Product parameters

Product advantages

Product Specifications
Model number	800	900	1100	1200	1350	1450	1680	1850	2200	2500
Number of Color Units	2、4、6、8、10
Maximum paper Width	850	950	1150	1250	1400	1500	1730	1900	2250	2550
Maximum Print Width	800	900	1100	1200	1350	1450	1680	1850	2200	2500
Print Repeat Length	400mm-1100mm					400mm-1100mm or 800mm-1524mm or customised
Maximum Winding Diameter	1524mm、1800mm（Option）
Maximum Mechanical Speed	500m/min 、 600-800m/min（Option）
Drying System	Electric heating, natural gas heating, steam heating, thermal oil heating
Applicable Inks	Water-based ink, solvent-based ink, or UV ink
Substrate Materials	Paper, film, non-woven fabric, etc.
Registration Accuracy	±0.05mm

★ Drawer-style anilox roller bracket with pneumatic locking for easy operation and quick anilox roller change.

★ Large-diameter impression roller (210mm) ensures stable printing performance.

★ Petal-type plate cylinder structure maintains consistent printing pressure, requiring minimal adjustment after plate changes.

★ Dual-side frame design for printing units allows lateral register adjustment without moving the impression roller, ensuring stable tension.

★ Short paper path design reduces setup waste and maintains tension stability.

★ Tool-free plate cylinder removal for fast changeovers.

★ Quick plate registration function for efficient alignment.

★ Micro-adjustment for plate cylinder positioning.

★ Lateral register adjustment.

★ Longitudinal (circumferential) register adjustment.

★ Automatic plate cylinder position retention when the machine stops.

★ Automatic plate disengagement and cleaning during shutdown while maintaining registration tracking.

★ Continuous anilox roller rotation during stops to prevent ink drying and permanent damage.
