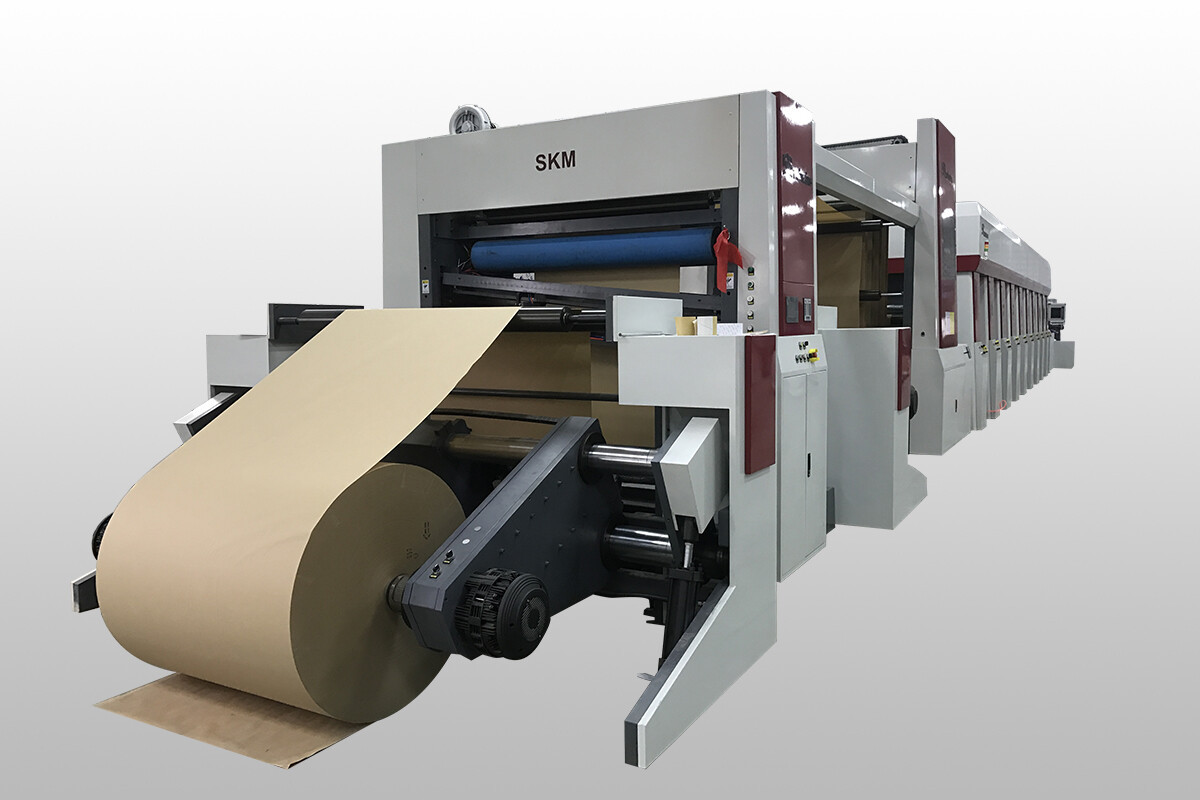

Paper cup paper bowl flexographic printing machine

Submit
Product parameters
Product advantages

Paper cup  paper bowl flexographic printing machine Product Specifications



Product Specifications

Model number

800

900

1100

1200

1350

1450

1680

1850

2200

2500

Number of Color Units

2、4、6、8、10

Maximum paper Width

850

950

1150

1250

1400

1500

1730

1900

2250

2550

Maximum Print Width

800

900

1100

1200

1350

1450

1680

1850

2200

2500

Print Repeat Length

400mm-1100mm

400mm-1100mm or 800mm-1524mm or customised

Maximum Winding Diameter

1524mm、1800mm(Option)

Maximum Mechanical Speed

500m/min 、 600-800m/min(Option)

Drying System

Electric heating, natural gas heating, steam heating, thermal oil heating

Applicable Inks


Water-based ink, solvent-based ink, or UV ink

Substrate Materials

Paper, film, non-woven fabric, etc.

Registration Accuracy

±0.05mm



★ The web-fed paper cup printing machine enables continuous printing and die-cutting, reducing material waste caused by paper edges. It minimizes the need for intermediate handling, stacking, and manual cleaning after die-cutting, thereby lowering labor costs.

★ Compliant with environmental standards. Food and beverage paper containers will inevitably transition to eco-friendly water-based ink printing.

★ Optional inline or offline post-printing processes such as coating, die-cutting, waste removal, and collection are available.

★ The enclosed doctor blade system allows the entire assembly to be disassembled, cleaned, and replaced freely, reducing ink splatter and meeting the basic requirements for food and beverage packaging printing.

★ Flexible imposition methods can be selected based on order volume, maximizing cost savings and improving production efficiency.

★ No need for gripper margins or tail edges, and the double-cut line width is minimized, increasing material utilization by nearly 10%.

★ Multiple drying options are available to meet the needs of different products.

★ The automatic color registration system, precise tension control system, and user-friendly interface simplify operation and ensure more stable print quality.
