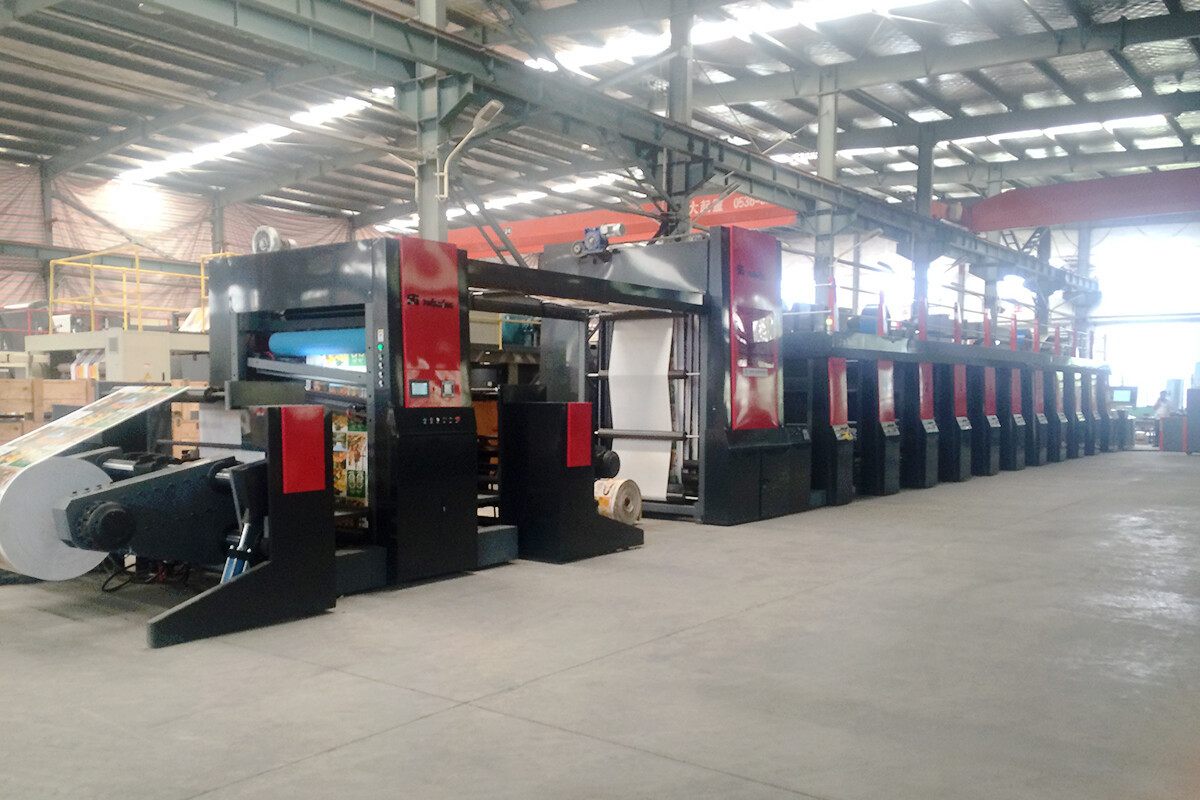

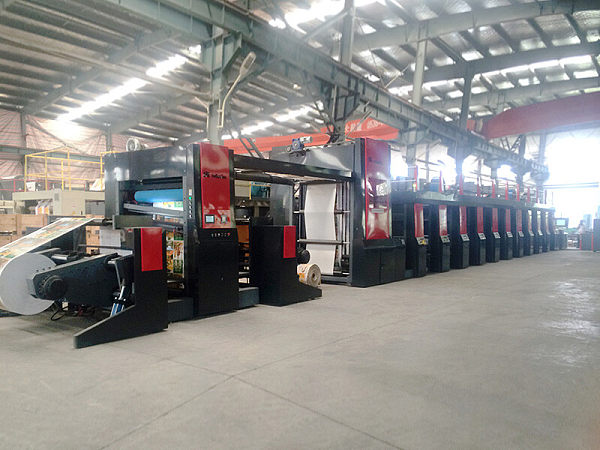

Corrugated box pre-printing machine

Submit
Product parameters
Product advantages

Corrugated box pre-printing machine Product specifications

294


Model NoTY1450-1TY1650-NTY1800-1TY2000-NTY2200-NTY2500-N
Maximum feeding width1480mm1680mm1850mm2050mm2250mm2550mm
Maximum printing width1450mm1650mm1800mm2000mm2200mm2500mm
Repetitive printing length420mm-1800mm 540mm-2150mm420mm-1800mm 540mm-2150mm420mm-1800mm 540mm-2150mm420mm-1800mm 540mm-2150mm420mm-1800mm 540mm-2150mm420mm-1800mm 540mm-2150mm
Number of color groupsChoose from 1-15 colorsChoose from 1-15 colorsChoose from 1-15 colorsChoose from 1-15 colorsChoose from 1-15 colorsChoose from 1-15 colors
Maximum machine speed275 meters/minute 350 meters/minute 450 meters/minute 500 meters/minute275 meters/minute 350 meters/minute 450 meters/minute 500 meters/minute275 meters/minute 350 meters/minute 450 meters/minute 500 meters/minute275 meters/minute 350 meters/minute275 meters/minute 350 meters/minute275 meters/minute 350 meters/minute
Maximum winding diameter1524mm1524mm1524mm1524mm1524mm1524mm
Registration accuracy0.1mm0.1mm0.1mm0.1mm0.1mm0.1mm
Gear specificationsPitch 3.175mm or 5mm or no pitch printingPitch 3.175mm or 5mm or no pitch printingPitch 3.175mm or 5mm or no pitch printingPitch 3.175mm or 5mm or no pitch printingPitch 3.175mm or 5mm or no pitch printingPitch 3.175mm or 5mm or no pitch printing
plate thickness1.7mm or specified1.7mm or specified1.7mm or specified1.7mm or specified1.7mm or specified1.7mm or specified
Double sided adhesive thickness0.38mm or specified0.38mm or specified0.38mm or specified0.38mm or specified0.38mm or specified0.38mm or specified

① Pre-printing Delivers Superior Water-Based Ink Prints

1. Shengong pre-press features monolithic cast side frames (80-120mm thick), aged, ground, and precision-machined on CNC centers for ultimate stability.

2. Computerized auto color registration ensures ±0.1mm accuracy. Pre-registration is achieved instantly upon plate loading, with auto-optimization after startup to minimize paper waste.

3. Eco-friendly water-based ink printing, compatible with inline aqueous/UV coating and laminating processes.

② Unmatched Production Efficiency

1. Tianyi Series pre-press operates at 275m/min.

2. Multiple web widths available for seamless integration with upstream/downstream processes.

③ Higher Strength Corrugated Boxes vs. Post-Print

1. Micro-adjustable ceramic anilox roller with bidirectional pressure control.

2. Quick-change anilox system – dual-stroke pneumatic auto-disengagement enables tool-free swaps.

3. Shaftless pneumatic plate/rubber roller mounting with lock and micro-adjust functions.

4. Pre-printed boxes exhibit 20%+ higher rigidity than traditional post-print boxes, eliminating fluting marks and edge warping.
